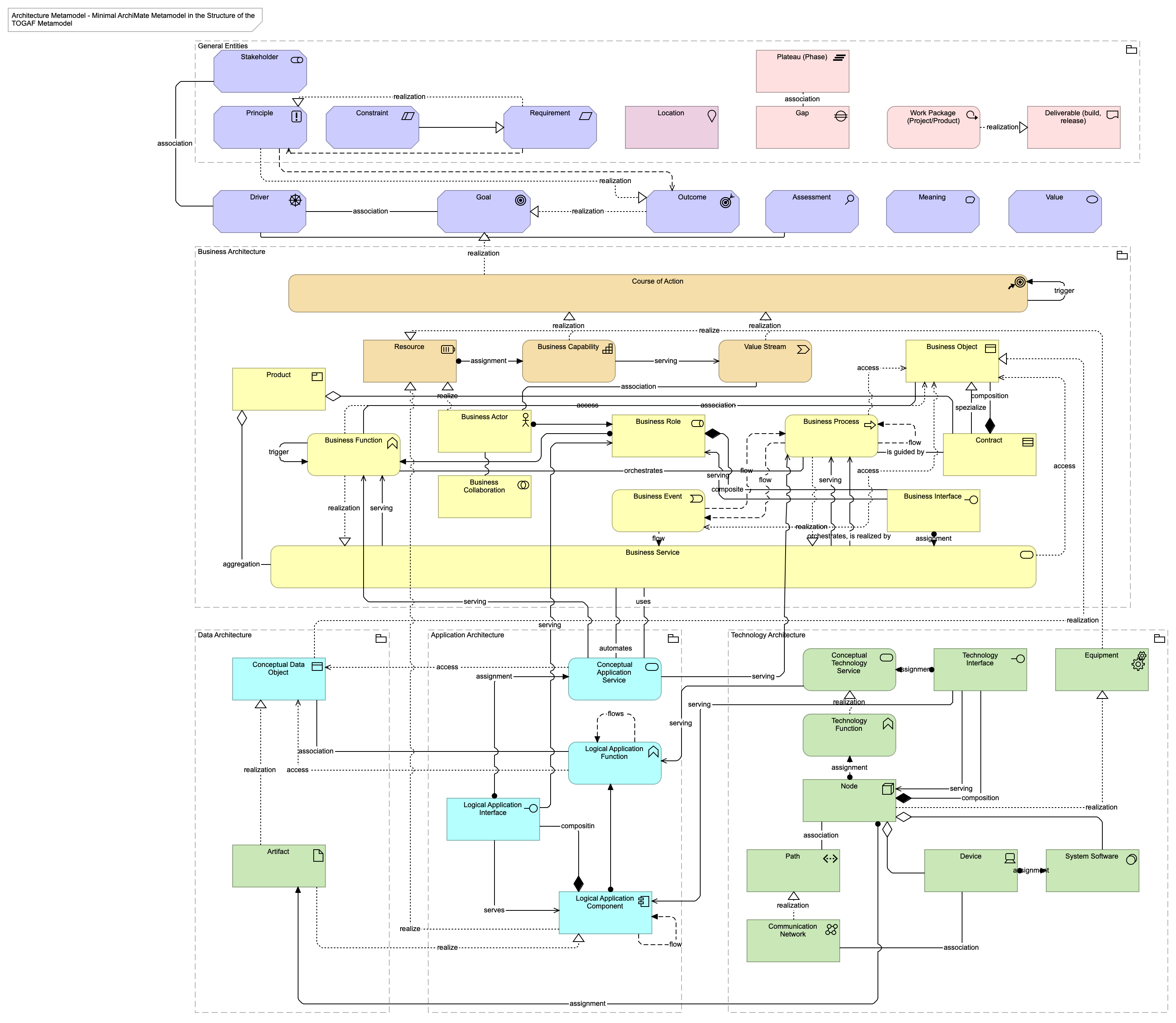

https://publications.opengroup.org/g21e Figure 145: Minimal ArchiMate Metamodel in the Structure of the TOGAF Metamodel Business Architecture has two core entities - Course of Action and - Business Service https://pubs.opengroup.org/togaf-standard/architecture-content/chap02.html#tag_02_03 (hat ganz andere Beziehungen als der g21e, g21e ist neuer, hat auch ganz andere Beziehungen als das Holisitc Model)
General Entities Deliverable (build, release)
realization Requirement Principle
Requirement Principle
realization Work Package (Project/Product) Deliverable (build, release)
Constraint Requirement
Principle Outcome
realization Principle Outcome
association Stakeholder Driver
association Plateau (Phase) Gap
association Driver Goal
realization Outcome Goal
Assessment Driver
realization Course of Action Goal
trigger Course of Action Course of Action
assignment Resource Business Capability
serving Business Capability Value Stream
realization Business Capability Course of Action
realization Value Stream Course of Action
realization Business Function Business Service
trigger Business Function Business Function
association Business Function Business Object
access Business Function Business Object
aggregation Product Business Service
Product Contract
composite Business Role Business Interface
Business Role Business Function
realization Business Process Business Service
orchestrates Business Process Business Function
flow Business Process Business Process
is guided by Business Process Contract
access Business Process Business Object
flow Business Process Business Event
composition Contract Business Object
spezialize Contract Business Object
serving Business Interface Business Role
assignment Business Interface Business Service
flow Business Event Business Service
access Business Event Business Object
flow Business Event Business Process
access Business Service Business Object
orchestrates, is realized by Business Service Business Process
serving Business Service Business Function
uses Business Service Conceptual Application Service
serving Business Service Business Process
association Business Actor Value Stream
realize Business Actor Resource
Business Actor Business Role
Business Collaboration Business Actor
association Conceptual Data Object Logical Application Function
realization Conceptual Data Object Business Object
realization Artifact Conceptual Data Object
realize Artifact Logical Application Component
serving Logical Application Interface Business Role
assignment Logical Application Interface Conceptual Application Service
serves Logical Application Interface Logical Application Component
access Conceptual Application Service Conceptual Data Object
serving Conceptual Application Service Business Process
serving Conceptual Application Service Business Function
automates Conceptual Application Service Business Service
access Logical Application Function Conceptual Data Object
flows Logical Application Function Logical Application Function
compositin Logical Application Component Logical Application Interface
flow Logical Application Component Logical Application Component
Logical Application Component Logical Application Function
realize Logical Application Component Resource
realization Communication Network Path
composition Node Technology Interface
assignment Node Artifact
Node Device
realization Node Equipment
association Node Path
Node System Software
assignment Node Technology Function
serving Conceptual Technology Service Logical Application Function
serving Technology Interface Logical Application Component
assignment Technology Interface Conceptual Technology Service
serving Technology Interface Node
realization Technology Function Conceptual Technology Service
realize Equipment Resource
association Device Communication Network
assignment Device System Software
