Pure TOGAF Meta Model ()
Pure TOGAF Meta Model

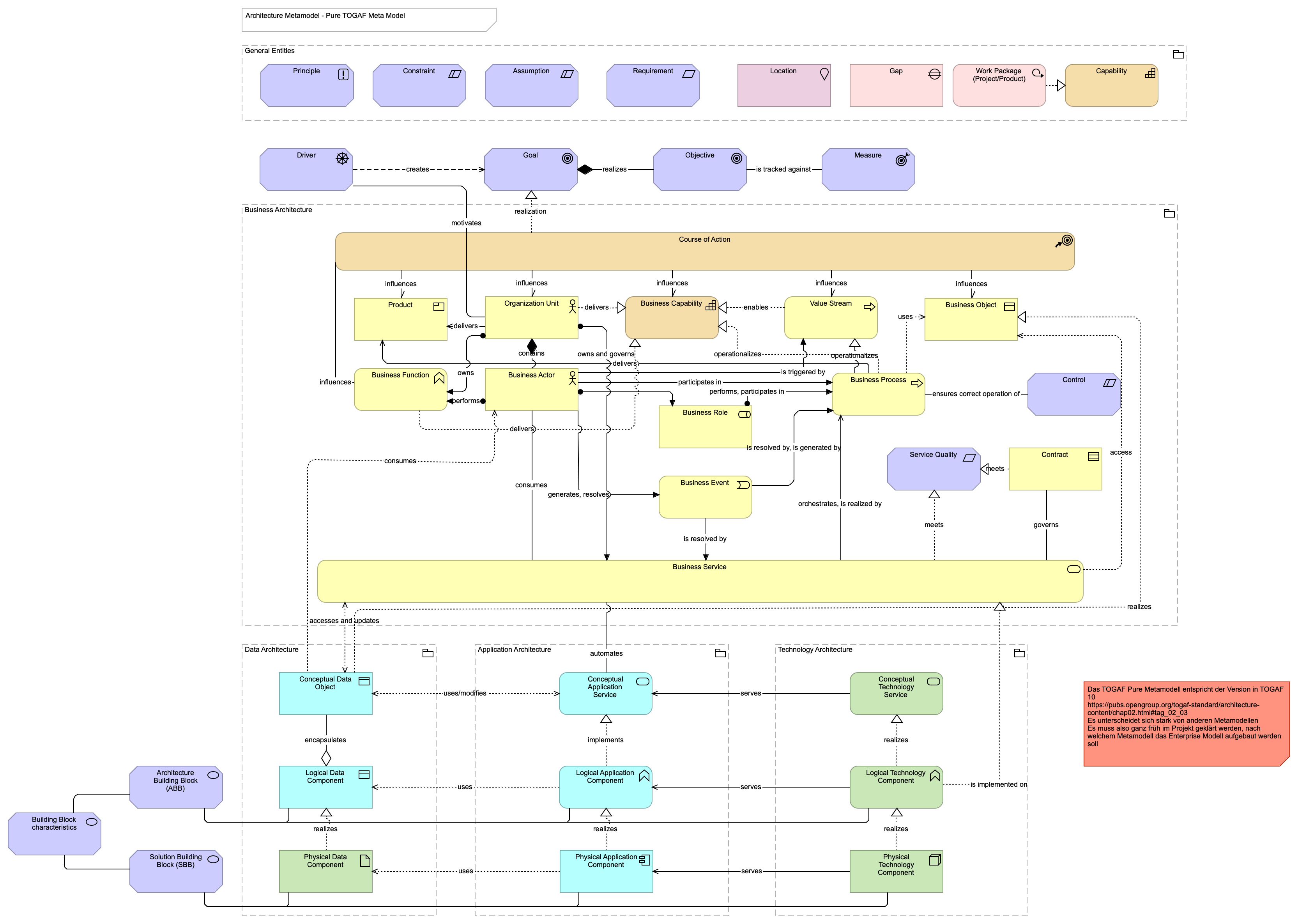

https://publications.opengroup.org/g21e Figure 146: Pure TOGAF Metamodel Business Architecture has two core entities - Course Action and - Business Service https://pubs.opengroup.org/togaf-standard/architecture-content/chap02.html#tag_02_03 (hat ganz andere Beziehungen als der g21e, g21e ist neuer, hat auch ganz andere Beziehungen als das Holisitc Model)
General Entities Gap
Work Package (Project/Product) Capability
motivates Driver Organization Unit
creates Driver Goal
realizes Goal Objective
Business Architecture Business Capability
Business Architecture Value Stream
influences Course of Action Business Object
influences Course of Action Business Capability
influences Course of Action Product
realization Course of Action Goal
influences Course of Action Organization Unit
influences Course of Action Business Function
influences Course of Action Value Stream
delivers Business Function Business Capability
performs, participates in Business Role Business Process
uses Business Process Business Object
operationalizes Business Process Business Capability
delivers Business Process Product
operationalizes Business Process Value Stream
governs Contract Business Service
meets Contract Service Quality
is resolved by Business Event Business Service
is resolved by, is generated by Business Event Business Process
accesses and updates Business Service Conceptual Data Object
orchestrates, is realized by Business Service Business Process
meets Business Service Service Quality
access Business Service Business Object
generates, resolves Business Actor Business Event
Business Actor Business Role
consumes Business Actor Conceptual Data Object
consumes Business Actor Business Service
participates in Business Actor Business Process
performs Business Actor Business Function
is triggered by Business Actor Value Stream
delivers Organization Unit Business Capability
owns and governs Organization Unit Business Service
owns Organization Unit Business Function
contains Organization Unit Business Actor
delivers Organization Unit Product
ensures correct operation of Control Business Process
enables Value Stream Business Capability
Data Architecture Conceptual Data Object
encapsulates Logical Data Component Conceptual Data Object
Logical Data Component Architecture Building Block (ABB)
Physical Data Component Solution Building Block (SBB)
realizes Physical Data Component Logical Data Component
realizes Conceptual Data Object Business Object
uses/modifies Conceptual Application Service Conceptual Data Object
automates Conceptual Application Service Business Service
uses Logical Application Component Logical Data Component
Logical Application Component Architecture Building Block (ABB)
implements Logical Application Component Conceptual Application Service
realizes Physical Application Component Logical Application Component
Physical Application Component Solution Building Block (SBB)
uses Physical Application Component Physical Data Component
serves Conceptual Technology Service Conceptual Application Service
Logical Technology Component Architecture Building Block (ABB)
realizes Logical Technology Component Conceptual Technology Service
serves Logical Technology Component Logical Application Component
is implemented on Logical Technology Component Business Service
realizes Physical Technology Component Logical Technology Component
serves Physical Technology Component Physical Application Component
Physical Technology Component Solution Building Block (SBB)
is tracked against Objective Measure
Architecture Building Block (ABB) Building Block characteristics
Solution Building Block (SBB) Building Block characteristics
