VSM Viable System Model ()

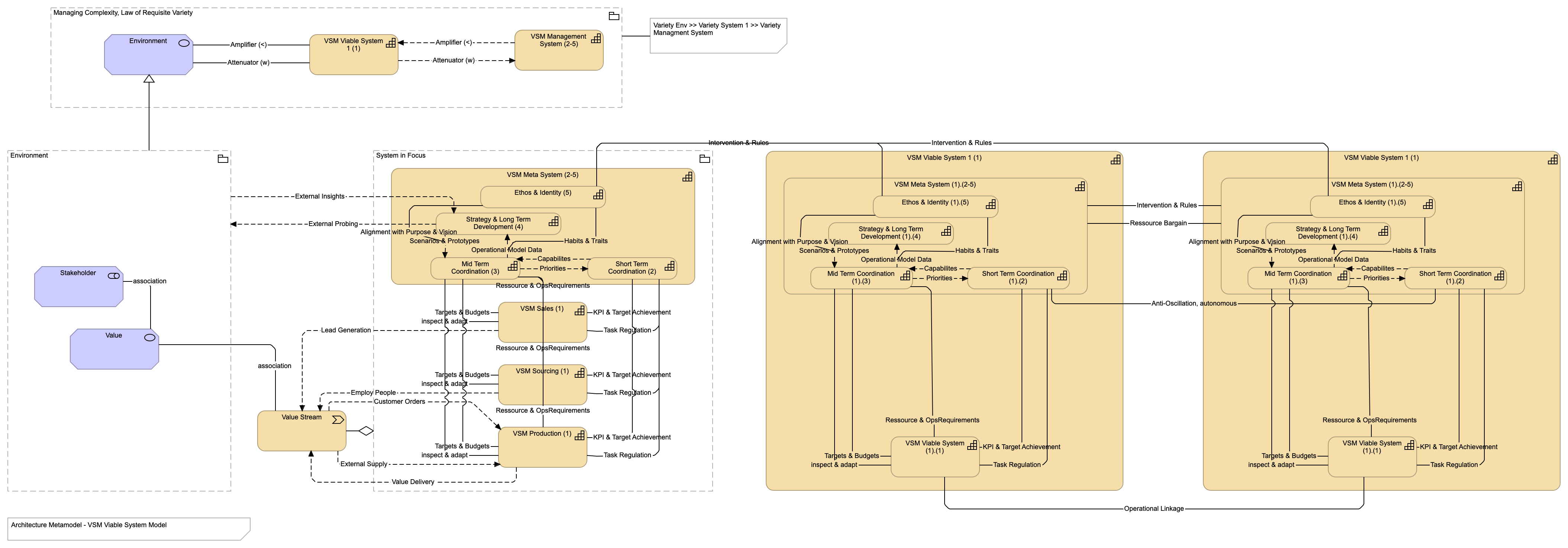

VSM Viable System Model
https://intelligente-organisationen.de/downloads Based on Canvas and Default Model in English System 1..5 Definitions and Interactions from the diagramm of https://en.wikipedia.org/wiki/Viable_system_model
Managing Complexity, Law of Requisite Variety VSM Viable System 1 (1)
Managing Complexity, Law of Requisite Variety Environment
Managing Complexity, Law of Requisite Variety VSM Management System (2-5)
Attenuator (w) Environment VSM Viable System 1 (1)
Attenuator (w) VSM Viable System 1 (1) VSM Management System (2-5)
Amplifier (<) VSM Viable System 1 (1) Environment
Amplifier (<) VSM Management System (2-5) VSM Viable System 1 (1)
External Insights Environment Strategy & Long Term Development (4)
Environment Value
Environment Stakeholder
Environment Environment
association Stakeholder Value
association Value Value Stream
System in Focus VSM Production (1)
System in Focus VSM Sales (1)
System in Focus VSM Meta System (2-5)
System in Focus VSM Sourcing (1)
System in Focus Value Stream
VSM Meta System (2-5) Ethos & Identity (5)
VSM Meta System (2-5) Strategy & Long Term Development (4)
VSM Meta System (2-5) Short Term Coordination (2)
VSM Meta System (2-5) Mid Term Coordination (3)
Alignment with Purpose & Vision Ethos & Identity (5) Scenarios & Prototypes
Habits & Traits Ethos & Identity (5) Operational Model Data
Intervention & Rules Ethos & Identity (5) Ethos & Identity (1).(5)
Intervention & Rules Ethos & Identity (5) Ethos & Identity (1).(5)
External Probing Strategy & Long Term Development (4) Environment
Scenarios & Prototypes Strategy & Long Term Development (4) Mid Term Coordination (3)
inspect & adapt Mid Term Coordination (3) VSM Sales (1)
Targets & Budgets Mid Term Coordination (3) VSM Sales (1)
inspect & adapt Mid Term Coordination (3) VSM Sourcing (1)
Operational Model Data Mid Term Coordination (3) Strategy & Long Term Development (4)
Targets & Budgets Mid Term Coordination (3) VSM Sourcing (1)
Priorities Mid Term Coordination (3) Short Term Coordination (2)
inspect & adapt Mid Term Coordination (3) VSM Production (1)
Targets & Budgets Mid Term Coordination (3) VSM Production (1)
Task Regulation Short Term Coordination (2) VSM Sourcing (1)
Task Regulation Short Term Coordination (2) VSM Sales (1)
Task Regulation Short Term Coordination (2) VSM Production (1)
Capabilites Short Term Coordination (2) Mid Term Coordination (3)
Ressource & OpsRequirements VSM Sourcing (1) Mid Term Coordination (3)
KPI & Target Achievement VSM Sourcing (1) Short Term Coordination (2)
Employ People VSM Sourcing (1) Value Stream
Ressource & OpsRequirements VSM Production (1) Mid Term Coordination (3)
Value Delivery VSM Production (1) Value Stream
KPI & Target Achievement VSM Production (1) Short Term Coordination (2)
Lead Generation VSM Sales (1) Value Stream
Ressource & OpsRequirements VSM Sales (1) Mid Term Coordination (3)
KPI & Target Achievement VSM Sales (1) Short Term Coordination (2)
Customer Orders Value Stream VSM Production (1)
External Supply Value Stream VSM Production (1)
VSM Viable System 1 (1) VSM Viable System (1).(1)
VSM Viable System 1 (1) VSM Meta System (1).(2-5)
VSM Meta System (1).(2-5) Strategy & Long Term Development (1).(4)
Intervention & Rules VSM Meta System (1).(2-5) VSM Meta System (1).(2-5)
VSM Meta System (1).(2-5) Ethos & Identity (1).(5)
VSM Meta System (1).(2-5) Short Term Coordination (1).(2)
VSM Meta System (1).(2-5) Mid Term Coordination (1).(3)
Ressource Bargain VSM Meta System (1).(2-5) VSM Meta System (1).(2-5)
Alignment with Purpose & Vision Ethos & Identity (1).(5) Scenarios & Prototypes
Habits & Traits Ethos & Identity (1).(5) Operational Model Data
Scenarios & Prototypes Strategy & Long Term Development (1).(4) Mid Term Coordination (1).(3)
Priorities Mid Term Coordination (1).(3) Short Term Coordination (1).(2)
Operational Model Data Mid Term Coordination (1).(3) Strategy & Long Term Development (1).(4)
inspect & adapt Mid Term Coordination (1).(3) VSM Viable System (1).(1)
Targets & Budgets Mid Term Coordination (1).(3) VSM Viable System (1).(1)
Capabilites Short Term Coordination (1).(2) Mid Term Coordination (1).(3)
Task Regulation Short Term Coordination (1).(2) VSM Viable System (1).(1)
KPI & Target Achievement VSM Viable System (1).(1) Short Term Coordination (1).(2)
Ressource & OpsRequirements VSM Viable System (1).(1) Mid Term Coordination (1).(3)
Operational Linkage VSM Viable System (1).(1) VSM Viable System (1).(1)
VSM Viable System 1 (1) VSM Meta System (1).(2-5)
VSM Viable System 1 (1) VSM Viable System (1).(1)
VSM Meta System (1).(2-5) Short Term Coordination (1).(2)
VSM Meta System (1).(2-5) Mid Term Coordination (1).(3)
VSM Meta System (1).(2-5) Strategy & Long Term Development (1).(4)
VSM Meta System (1).(2-5) Ethos & Identity (1).(5)
Habits & Traits Ethos & Identity (1).(5) Operational Model Data
Alignment with Purpose & Vision Ethos & Identity (1).(5) Scenarios & Prototypes
Scenarios & Prototypes Strategy & Long Term Development (1).(4) Mid Term Coordination (1).(3)
Targets & Budgets Mid Term Coordination (1).(3) VSM Viable System (1).(1)
Operational Model Data Mid Term Coordination (1).(3) Strategy & Long Term Development (1).(4)
inspect & adapt Mid Term Coordination (1).(3) VSM Viable System (1).(1)
Priorities Mid Term Coordination (1).(3) Short Term Coordination (1).(2)
Capabilites Short Term Coordination (1).(2) Mid Term Coordination (1).(3)
Anti-Oscillation, autonomous Short Term Coordination (1).(2) Short Term Coordination (1).(2)
Task Regulation Short Term Coordination (1).(2) VSM Viable System (1).(1)
Ressource & OpsRequirements VSM Viable System (1).(1) Mid Term Coordination (1).(3)
KPI & Target Achievement VSM Viable System (1).(1) Short Term Coordination (1).(2)
