Drafts

Drafts#

The process of a draft leads to a new or updated legislative resource.

Example#

Throughout this sub-page, the following draft that led to a change in the SR 192.12 is used as an example.

In the given example, the draft is about changing an already existing law, the necessary steps (independent from any JOLux modelling) included:

URI#

The URI of a draft contains the following parts:

  • Standard namespace and path: https://fedlex.data.admin.ch/eli/

  • the part dl/proj is used as path for all drafts (dl stands for draft legislation and proj for project)

  • XXXX/YYYY is an identifier

General Structure#

Every draft is of type jolux:Draft.

jolux:Draft

The owl:Class jolux:Draft is used for drafts.

The following figure shows the general structure of a draft:

_images/draft.png

General structure of a draft.#

As the draft process is closely related to the parliamentary process, the id for this process is given by jolux:parliamentDraftId:

jolux:parliamentDraftId

The data property jolux:parliamentDraftId is used to connect a jolux:Draft to the identifier of the parliamentary process that leads to the new legal resource.

For each draft, there is also a draft id registered that is also part of the URI but is given as separate property for easier access:

jolux:draftId

The data property jolux:draftId is used to connect a jolux:Draft to the identifier of the draft.

The main result of the draft process is the draft law that is connected to the draft via jolux:hasResultingLegalResource and is from type jolux:Act:

jolux:hasResultingLegalResource

The object property jolux:hasResultingLegalResource is used to connect a jolux:Draft to the resulting legal resource that is of type jolux:Act. The draft law enters afterward the parliamentary process.

The different tasks of the draft process are connected to the draft via jolux:draftHasLegislativeTask:

jolux:draftHasLegislativeTask

The object property jolux:draftHasLegislativeTask is used to connect a jolux:Draft to the different legislative tasks that are part of the draft process.

Connection between the jolux:Draft and the Official Compilation (OC) and the Classified Compilation (CC)

The draft process is not directly connected (metadata wise) to the Official Compilation (OC) and the Classified Compilation (CC). This could change with a future release of the JOLux ontology.

Datatype Properties#

Object Properties#

Object properties that point to an individual:

Graph Structure of the Example#

The following figures show the graph structure of above example. Please note that the graph is not complete and only shows the main connections between the draft and the resulting legal resources.

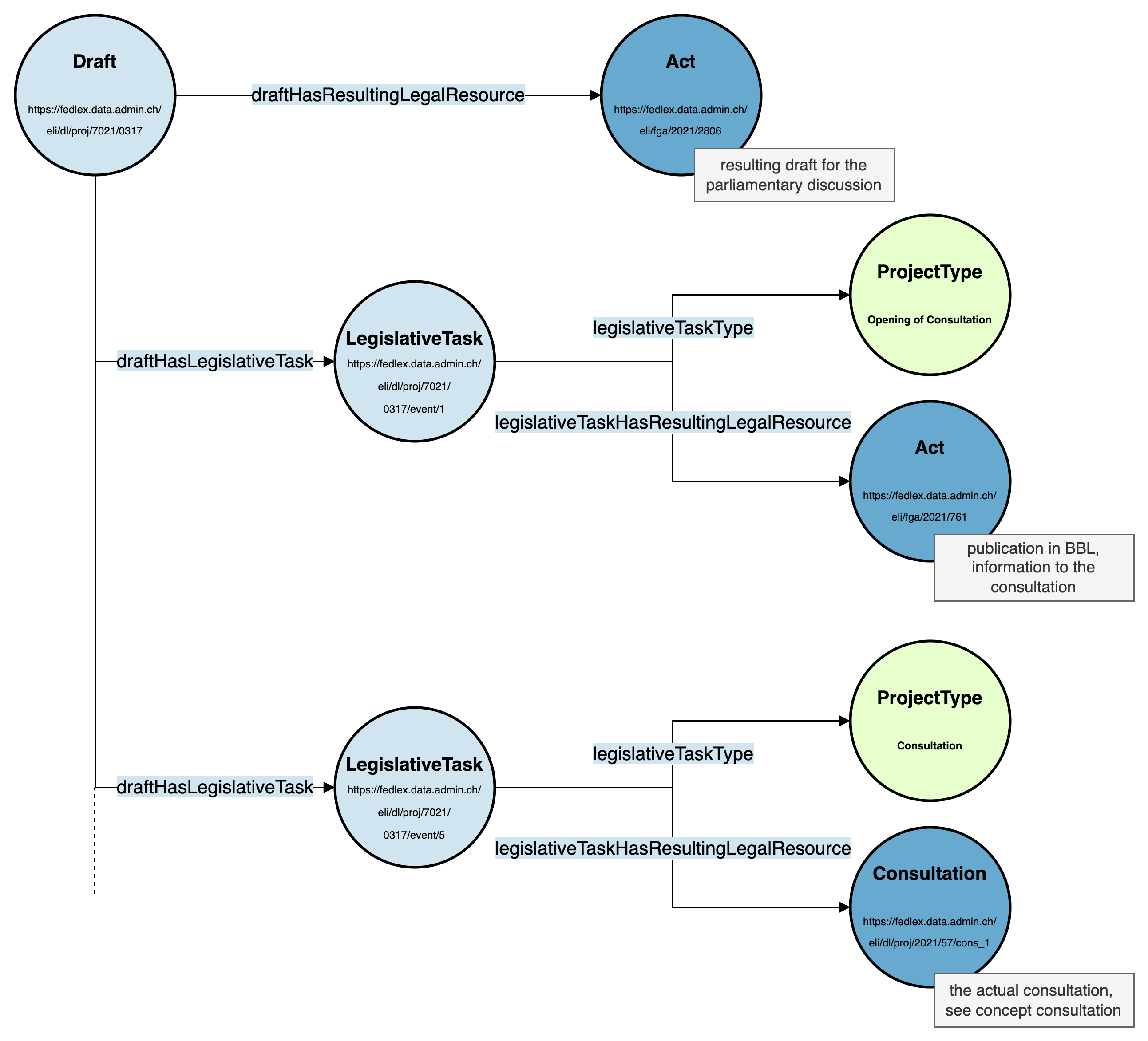

_images/draft_example_1.png

Graph structure of the example draft - part 1. Open image in new tab for better visibility.#

_images/draft_example_2.png

Graph structure of the example draft - part 2. Open image in new tab for better visibility.#

SPARQL Examples#

The following SPARQL query retrieves the 10 latest drafts that involve a consultation process and have a published draft law:

PREFIX jolux: <http://data.legilux.public.lu/resource/ontology/jolux#>

SELECT DISTINCT ?draft ?date WHERE {
  ?draft a jolux:Draft ;
         jolux:draftHasLegislativeTask ?task ;
         jolux:hasResultingLegalResource/jolux:dateDocument ?date .
  ?task jolux:legislativeTaskType <https://fedlex.data.admin.ch/vocabulary/type-projet/1> .
} ORDER BY DESC(?date) LIMIT 10

The following SPARQL query retrieves all drafts with their resulting legal resource and the type and date of the resulting legal resource, ordered by date of the resulting legal resource:

PREFIX jolux: <http://data.legilux.public.lu/resource/ontology/jolux#>
PREFIX skos: <http://www.w3.org/2004/02/skos/core#>

SELECT DISTINCT * WHERE {

  ?draft a jolux:Draft;
         jolux:parliamentDraftId ?CuriaId ;
         jolux:hasResultingLegalResource ?act .
  ?act jolux:typeDocument/skos:prefLabel ?type ;
                         jolux:dateDocument ?date .

      FILTER(lang(?type) = "de")

} ORDER BY DESC(?date)
